home automation

Licht24 PRO
Control software for relay boards and digital IO cards

#########
Control software for relay boards and digital IO cards Licht24 PRO - Control software for relay boards and digital IO cards incl. weekly automatic-timer Control software for relay boards and digital IO cards
Seite in Deutsch
Deutsch
Page in English
English

Licht24 PRO gives you the control of arbitrary equipment, quick and comfortable with your PC.
Ideal for discos, stage, partyrooms, model railway or home automation use. It's a universal
control desk for your PC with various features.


To control the outputs you will find these functions ready:

Nonlocking key for tip-operation Nonlocking key for tip-operation

Switch for ON/OFF-operation Switch for ON/OFF-operation (Status-LED)

Emergency-stop-function Emergency-stop-function

Flash with variable speed Flash with variable speed

Weekly automatic-timer with 1 sec resolution = max. 86400 switching commands /day Weekly automatic-timer with 1 sec resolution = max. 86400 switching commands /day and channel

Every channel can have it's individual marking Control alarms via system time or internal stopwatch feature.

######### Astro times: sunrise, noon and sunset times for timer usage

Randomizer optionally controls 1, 2, 3 or 4 outputs Randomizer optionally controls 1, 2, 3 or 4 outputs

999 programs with up to 99 steps, free to program! 999 programs with up to 99 steps, free to program!

Program- and random clock also music controlled Program- and random clock also music controlled

command line Command line feature

######### Pulse mode with adjustable delay for each channel (e.g. 2000ms for surge relais, or any off delay)


More Extras:

######### Inputs "bksoft 8 IO" card and "Velleman K8055" with toggle function (replace notching relays !!!)

######### Sound output on channel HIGH and LOW possible

######### Counter function on channel HIGH possible

Every channel can have it's individual marking Every channel can have it's individual marking

Informative status-display Informative status-display

Informative status-display Informative log files

Various skins selectable (108 different Surfaces) Various skins selectable (112 different Surfaces)

English or German user adjustable interface English or German user adjustable interface

home automation ...

Licht24 PRO - Control software for relay boards and digital IO cards incl. weekly automatic-timer

Special functions:

Weekly automatic-timer
The integrated weekly timer offers you a wide range of possibilities, e.g. use your
stereo-set for an alarm-clock, switch on your coffee machine 10 mins before you
wake up, childproof lock to switch on the tv at wanted times and off later. Climate
control e.g. switch ventilators or heatings,... It does everything that an automatic
timer can do. Every channel has a extra graphical view for the alarm list entrys.
The alarms can be controlled via system clock or internal stopwatch.

Astro times
By petition of longitude and latitude as well as the time zone it possible to calculate the sunrise, noon, and the sunset times exactly for every day. These astro times can be used with the automatic timers.

Program-Mode
Within the program mode you can have up to 999 separate programs, every single
program can store a run of 99 steps. To program a run-light you simply set
channel 1 to high on step 1, channel 2 to high on step 2, channel 3 on step 3, aso.
Set the number of the last step and the program starts at the beginning again.
There are already 30 ready to use programs stored (No.1-30).

Randomized control
1-4 outputs can be controlled randomly via a predefined clock. Ideal to switch different
devices on and off randomly (eg. stage or discothek). Set the channel number that
should be the last one, e.g. to control only the first 8 channels randomly you can adjust
the max. random value to 8.

Music-Control
Additionally it is possible to have control of the next clock impulse via music. The
beat is filtered similar to a clavilux and a clock impulse is generated for each beat.
Just plug a music signal to your soundcard's LINE-IN port. This will produce a special
interesting effect.

Command line parameter
The program can be controlled also with command line parameters.
Therefore Licht24 can switch relay cards invisible in the background.
For instance: licht24pro.exe /CONRADSERIAL /1 /1000 switches the channel 1 of a
Conrad card for 1sec to HIGH, then to LOW again and exits after processing.

Instead of the time parameter you can use /ON or /OFF to switch the corresponding channel. For example: licht24pro.exe /CONRADSERIAL /1 /ON switches the channel 1 of a Conrad card permanently to HIGH. With this method only one channel can be controlled, all other channels are set to LOW! Since version 2.2.2.2 you can use the parameter /BUFFER to protect other channels to be reset while using the /ON or /OFF commands. Example: licht24pro.exe /CONRADSERIAL /1 /ON /BUFFER

To control more channels at one time use flags for the channel parameter. For example: licht24pro.exe /CONRADSERIAL /11000000 /ON switches the channel 1 + 2 of a Conrad card permanently to HIGH.

The command line parameters can be sent also as a message (WMCopyData) to Licht24 Pro. The Licht24 Pro software is running permanently and can receive WMCopyData commands. This way you can send also commands from your own software to Licht24 Pro. In the Licht24 Pro installations directory there is a tool which can send commands to Licht24 Pro. The tool is called sndmsg.exe and is executed like Licht24 pro with command line parameter, eg. sndmsg.exe /CONRADSERIAL /11000000 /ON switches the channel 1 + 2 of a Conrad card to HIGH.

Since version v2.3.2.6 there are special remote commands available:

/CMD_STOP Stops the programm, sound and random control
/CMD_CLOSE Closes Licht24 Pro
/CMD_RESETCLOSE Closes Licht24 Pro and clears all outputs
/CMD_LOAD Loads again the alarmlists
/CMD_CLOCKPROGRAM Triggers the program control
/CMD_CLOCKRANDOM Triggers the random control
/CMD_CLOCKFLASH Triggers the flash control
/CMD_LOADSETTINGS1 Loads settings 1
up to
/CMD_LOADSETTINGS16 Loads settings 16

Example: "sendmsg.exe /CMD_CLOSE" closes Licht24 Pro

Sound output
By means of individual sound output for every channel it is now possible to play arbitrary sounds on HIGH and/or LOW. Using different sounds the corresponding channel can be detected acoustically or being provided a soundtrack for. The 2 default sounds which are included with Licht24 pro can play a higher sound on HIGH as well as a lower sound on LOW (high.wav and low.wav). By the use of speech files a function can explicit be announced, eg. "light on" and "light off" and so on. In the area of model railroad control different locomotive sounds or announcements can be played when entering the station.

Counter function
With the counter function every HIGH switch can be counted for every channel.

Pulse mode
Using the "Impulse-mode" it is possible to control notching relays. That means that only short impulses are issued on the respective outputs. The pulse length is adjustable separately for each channel. With this function it is also possible to realize switching off delays up to 49 days. The button can be excluded from the pulse mode control for each channel, and thus used to control the brightness of a touch dimmer switch.

You can find more informations in the Licht24 PRO manual and in the Licht24 PRO Forum



setup_licht24pro.exe
Version 2.8.7.1 [04/22/2017]
30.896.802 Byte

german + english user interface german + english user interface

Win2000, Win XP, Windows Vista, Windows 7,
Windows 8, Windows 10, Win Server, 32Bit and 64Bit


download Licht24 Pro    buy now
Licht24 Pro version history





Licht24 PRO supports following IO cards and relay boards:

8 Channel Digital IN/OUT Module

Serial 8 Channel Digital IN/OUT Module

Name: bksoft 8 IO
Connection: Serial COM port,
optional USB (virtual COM)
Operating voltage: 5V= , max. 300mA
Channels: 8 digital inputs / 8 digital outputs
Licht24 PRO supports 3 cards,
(use 3 cards for 24 channels)
Licht24 PRO supports all inputs and outputs!
Output level: open N-Channel Power MOSFET Transistor outputs, max. 55V/30A
optional relays board connector.
Indicator: every channel has a signal LED
Size: 100 x 75 mm
Art: Ready equipment

Manufacturer: bksoft
Supplier: casino-software.de (direct link)
Article-No: 042


Serial 8-channel relay board Conrad

Serial 8-channel relay board

Name: Conrad Relay board
Connection: Serial COM port
optional USB (virtual COM)
Operating voltage: 12-24V= , max. 300mA
Channels: 8 Outputs,
Licht24 PRO supports 3 cards,
(use 3 cards for 24 channels)
Relay contact: respectively 1xNO/NC, 230V/5A, without separate function and security checking it is max. 24V/4A for the complete application permitted!
Indicator: every channel has a signal LED
Size: 160 x 100 mm
Art: Ready equipment

Manufacturer: Conrad Electronic
Supplier: Conrad Electronic ######### (direct link)
Article-No: 197720

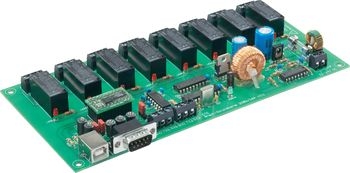

Serial 8-channel relay board Conrad

Serial 8-channel relay board

Name: Conrad Relay board
Connection: Serial COM port
optional USB (virtual COM)
Operating voltage: 12-24V= , max. 400mA
Channels: 8 Outputs,
Licht24 PRO supports 3 cards.
(use 3 cards for 24 channels)
Relay contact: respectively 1xNO/NC, 230V/16A
Indicator: every channel has a signal LED
Size: 212 x 100 mm
Art: Ready equipment

Manufacturer: Conrad Electronic
Supplier: Conrad Electronic ######### (direct link)
Article-No: 197730


Serial 8-channel relay board Conrad

Serial 8-channel relay board

Name: Conrad Relay board
Connection: Serial COM port
Operating voltage: 12V= , max. 200mA
Channels: 8 Outputs,
Licht24 PRO supports 3 cards.
(use 3 cards for 24 channels)
Relay contact: respectively 1xON, 230V/4A, without separate function and security checking it is max. 24V/4A for the complete application permitted!
Indicator: every channel has a signal LED
Size: 160 x 100 mm
Art: Ready equipment

Manufacturer: Conrad Electronic
Supplier: Conrad Electronic
Article-No: 967720, not longer available !!!


Serial 8-channel relay board Velleman K8056

Serial 8-channel relay board

Name: Velleman K8056
Connection: Serial COM port
Operating voltage: 12V~ , max. 500mA
Channels: 8 Outputs,
Licht24 PRO supports 3 cards.
(use 3 cards for 24 channels)
Relay contact: respectively 1xON, 230V/5A
Indicator: every channel has a signal LED
Extras: optional RF remote unit
Size: 160 x 100 mm
Art: Kit

Manufacturer: Velleman
Supplier: Conrad Electronic ######### (direct link)
Article-No: 190989


Serial 8-channel IO card ELV IO 88

Serial 8-channel IO card

Name: RS-232-IO-Board IO 88
Connection: Serial COM port
Operating voltage: 9-15V= , max. 200mA
Channels: 8 Inputs / 8 Outputs
Licht24 PRO supports 1 card.
Licht24 PRO supports outputs only!
Output voltage: 5V
Output current: max. 10mA
Indicator: none
Extras: SMD form
Size: 83 x 65 mm
Art: Kit

Manufacturer: ELV
Supplier: ELV
Article-No: 4047269


Serial 8-channel switch interface ELV CSI 7002

Serial 8-channel switch interface

Name: CSI 7002
Connection: Serial COM port
Operating voltage: 230V AC , 50mA
Channels: 8 Inputs / 8 Outputs
Licht24 PRO supports outputs only!
Relay contact: respectively 1xSwitchover, 230V/16A
Indicator: none
Size: 272 x 92 x 150 mm
Art: Kit or Ready equipment

Manufacturer: ELV
Supplier: ELV
Article-No: 68-380-01, not longer available !!!


8-channel TCP/IP card AVR-NET-IO

8-channel TCP/IP card AVR-NET-IO

Name: AVR-NET-IO
Connection: Network TCP/IP
Operating voltage: external 9V AC
Channels: 8 digital Out / 4 analog IN / 4 ADC IN
Licht24 PRO supports outputs only!
Relay contact: respectively TTL
Indicator: none
Size: 108 x 76 mm
Art: Kit or Ready equipment

Manufacturer: Pollin
Supplier: Pollin (direct link)
Article-No: 810058 or 810073

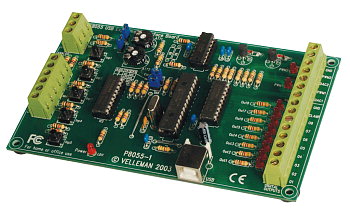

8-channel USB board Velleman

8-channel USB board

Name: Velleman K8055
Connection: USB
Operating voltage: via PC
Channels: 5 digital IN / 2 analog IN / 8 Outputs
Licht24 PRO supports 3 cards.
(use 3 cards for 24 channels)
Licht24 PRO supports all inputs and outputs!
Output level: open collector outputs,
max. 50 V/100 mA
Indicator: every channel has a signal LED
Size: 145 x 88 mm
Art: Kit or Ready equipment

Manufacturer: Velleman
Supplier: Conrad Electronic ######### (direct link)
Article-No: 191003


USB 8-Kanal Schaltinterface ELV CSI 8

USB 8-channel switch interface

Name: CSI 8
Connection: USB
Operating voltage: 230V AC , 50mA
Channels: 8 Inputs / 8 Outputs
Licht24 PRO supports outputs only!
Relay contact: respectively 1xSwitchover, 230V/16A
Indicator: none
Size: 272 x 92 x 150 mm
Art: Kit

Manufacturer: ELV
Supplier: ELV
Article-No: 68-614-91

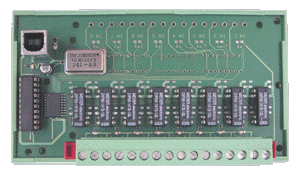

8-channel USB relay board USBREL8

8-channel USB relay board USBREL8

Name: USBREL8 / USBREL8LC
Connection: USB
Operating voltage: via PC
Channels: 8 Outputs
Licht24 PRO supports 3 cards.
(use 3 cards for 24 channels)
Relay contact: respectively DIL relays,
max. 15W/1A
Indicator: every channel has a signal LED
Size: 133 x 72 mm
Art: Ready equipment

Manufacturer: Quancom
Supplier: Conrad Electronic ######### (direct link)
Article-No: 198196


Hoffmann IO32USB

16-channel USB board

Name: Hoffmann IO32USB / IO16USB
Connection: USB
Operating voltage: via PC
Channels: 16 Inputs / 16 Outputs
Licht24 PRO supports outputs only!
Output level: open collector outputs,
max. 30 V/100 mA
Indicator: every channel has a signal LED
Size: 160 x 100 mm
Art: Kit or Ready equipment

Manufacturer: Hoffmann Datensysteme
Supplier: Hoffmann Datensysteme
Article-No: 1101


16-channel USB relay board USBOPTOREL16

16-channel USB relay board USBOPTOREL16

Name: USBOPTOREL16 / USBOPTO16IO
Connection: USB
Operating voltage: via PC or external supply
Channels: 16 Inputs / 16 Outputs
Licht24 PRO supports 1 card.
Licht24 PRO supports outputs only!
Relay contact: respectively DIL relays,
max. 15W/1A
Indicator: every channel has a signal LED
Size: 253 x 105 mm
Art: Ready equipment

Manufacturer: Quancom
Supplier: Conrad Electronic ######### (direct link)
Article-No: 191185

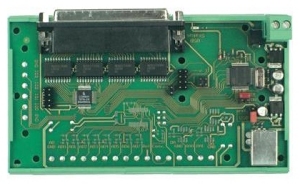

24-Channel USB card USBTTL24

24-Channel USB card USBTTL24

Name: USBTTL24
Connection: USB
Operating voltage: via USB port or external supply
Channels: 24 Inputs / Outputs
Licht24 PRO supports outputs only!
Relay contact: respectively TTL
Indicator: none
Size: 133 x 72 mm
Art: Ready equipment

Manufacturer: Quancom
Supplier: Conrad Electronic ######### (direct link)
Article-No: 191238


32-channel USB relay board USBOPTOREL32

32-channel USB relay board USBOPTOREL32

Name: USBOPTOREL32
Connection: USB
Operating voltage: via PC or external supply
Channels: 32 Inputs / 32 Outputs
Licht24 PRO supports 1 card.
Licht24 PRO supports 24 channels only.
Licht24 PRO supports outputs only!
Relay contact: respectively DIL relays,
max. 15W/1A
Indicator: every channel has a signal LED
Size: 253 x 105 mm
Art: Ready equipment

Manufacturer: Quancom
Supplier: Conrad Electronic ######### (direct link)
Article-No: 191198


DEDITEC Module

DEDITEC Module (all)

Name: DEDITEC Module:
USB_Interface8, USB_CAN_STICK, USB_LOGI_500, RO_USB2, RO_SER, USB_BITP_200, RO_USB1, RO_ETH, USB_MINI_STICK, USB_LOGI_18, RO_CAN, USB_SPI_MON
Connection: CAN-Bus, Ethernet, RS-232/RS-485, USB
Operating voltage: via PC or external supply
Kanäle: depends on the used Modul
Licht24 PRO supports outputs only!
Relay contact: depends on the used Modul
Indicator: every channel has a signal LED
Size: depends on the used Modul
Art: Ready equipment

Manufacturer: DEDITEC
Supplier: DEDITEC
Article-No: depends on the used Modul


Parallel 8-channel relay board Kemo B210

Parallel 8-channel relay board

Name: Kemo B210
Connection: Printerport LPT
Operating voltage: 12V= , max. 800mA
Channels: 8 Outputs,
Licht24 PRO supports 1 card.
Relay contact: respectively 1xON, 230V/3A, without separate function and security checking it is max. 24V/3A for the complete application permitted!
Indicator: every channel has a signal LED
Size: 112 x 70 mm
Art: Kit

Manufacturer: Kemo
Supplier: Conrad Electronic ######### (direct link)
Article-No: 130217


Parallel 8-channel relay module Kemo M125

Parallel 8-channel relay module

Name: Kemo M125
Connection: Printerport LPT
Operating voltage: via PC
Channels: 8 Outputs,
Licht24 PRO supports 1 card.
Relay contact: Solid-State-Relais, 40V/0,4A
Indicator: none
Size:
Art: Ready equipment

Manufacturer: Kemo
Supplier: Westfalia Technica
Article-No: 750125


Parallel 8-channel relay board Hygrosens CON-REL-T1

Parallel 8-channel relay board

Name: Hygrosens CON-REL-T1
Connection: Printerport LPT
Operating voltage: 12-16V= , max. 200mA
Channels: 8 Outputs,
Licht24 PRO supports 1 card.
Relay contact: Reed Relays, 30V/0,5A
Indicator: every channel has a signal LED
Extras: EMV-Save, hat-bar fastening suitable.
Typ Rel-T2 (line voltage) available.
Size: 100 x 64 mm
Art: Ready equipment

Manufacturer: Hygrosens
Supplier: Conrad Electronic ######### (direct link)
Article-No: 183084


Parallel 8-channel relay board Weidner PC-REL-F

Parallel 8-channel relay board

Name: Weidner PC-REL-F
Connection: Printerport LPT
Operating voltage: 6V= , max. 800mA
Channels: 8 Outputs,
Licht24 PRO supports 1 card.
Relay contact: respectively 1xCHANGEOVER, 230V/10A, without separate function and security checking it is max. 24V/4A for the complete application permitted!
Indicator: none
Size: 100 x 68 mm
Art: Kit or Ready equipment

Manufacturer: Weidner
Supplier: Weidner (direct link)
Article-No: PC-REL-B (Kit)
or PC-REL-F (Ready equipment)


24-channel 8255 IO card

24-channel 8255 IO card

Name: TTL24IO
Connection: internal ISA or PCI card
Operating voltage: via PC
Channels: 24 Inputs OR Outputs
Licht24 PRO supports outputs only!
Output level: TTL
Indicator: none
Size: 108 x 36 mm
Art: Ready equipment

Manufacturer: Quancom
Supplier: Quancom
Article-No: indttl24io


16-channel PCI card

16-channel PCI card

Name: PCIREL16
Connection: internal PCI card
Operating voltage: via PC
Channels: 16 Outputs
Relay contact: respectively DIL Reed,
max. 30V/1A
Indicator: every channel has a signal LED
Art: Ready equipment

Manufacturer: Quancom
Supplier: Quancom
Article-No: pcirel16



order Licht24 PRO ...
order Licht24Pro




You want to suggest us a IO interface that should be supported by Licht24 or you have a good idea about a useful function? Please send us your suggestions and comments via EMail to: info@bksoft.de

Take care about the currently accepted regulations in the operating instructions of the respective relay board or IO interface !


#########

Home | Welcome | FAQ | MegaBonus | HotSeven | 3D Poker Bandit | 12th Century BlackJack | Superfruit | SVGA-Karten
Fun-Towers | Eleven | Zoggi | VideoPoker | Licht24 Pro | Contact | Software development | EMail | Order | Links | Forum


© Copyright by bksoft

Checked by HTML Tidy
